Description
Field of application

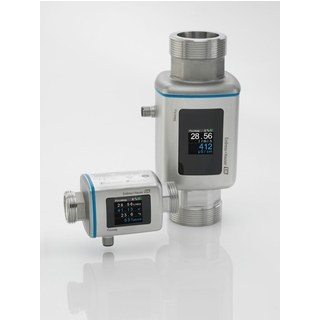

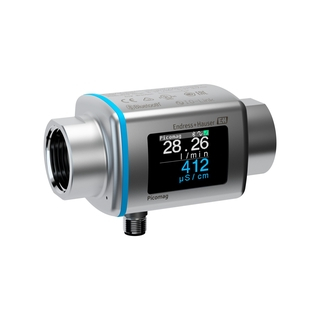

Picomag Inline is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag Inline for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.
Benefits
- Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection
- Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement
- Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing
- Quick offline configuration check – unique, comfortable knock functionality
- Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue app
- Instant local process monitoring – large, user-friendly display of all measurement activities
- Flexible integration into all fieldbus systems – plug-and-play device with IO-Link
- The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
- Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.
Device properties
- High shock and vibration resistance
- Degree of protection: IP65/67
- Empty pipe detection
- Wireless remote access via Bluetooth SmartBlue app
- IO-Link and various I/Os for all line-sizes
- 4″ TFT color display with backlight
- Measuring principle
Electromagnetic
- Product headline
Smart magmeter for utilities – intuitive · convenient · multivariable.
Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection.
Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.
- Sensor features
Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement. Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing.
High shock and vibration resistance. Degree of protection: IP65/67. Empty pipe detection.
- Transmitter features
Quick offline configuration check – unique, comfortable knock functionality. Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue app. Effortless configuration of several devices – settings can be saved and loaded into other meters. Flexible integration into all fieldbus systems – plug-and-play device with IO-Link.
Wireless remote access via Bluetooth SmartBlue app. IO-Link and various I/Os for all line-sizes. 1.4″ TFT color display with backlight.
- Nominal diameter range
DN15 to 50 (1/2 to 2″)
- Wetted materials
PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L
- Measured variables
Volume flow, Temperature, Conductivity
- measurement error
Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
- Measuring range
up to 750 l/min
- process pressure
16 bar
- Medium temperature range
-10 to 70°C (+14 to +158 °F)
Permissible short-term temperature, maximum one hour:
85 °C (185 °F)
Repetition after 4 hours at the earliest
- Ambient temperature range
-10 to 60 °C
- Sensor housing material
1.4404/316L, Polycarbonate
- Transmitter housing material
1.4404/316L, Polycarbonate
- Degree of protection
IP 65/67
- Display/Operation
Integrated display, operation via Bluetooth technology
- Outputs
Current (4 to 20mA)
Pulse
Switch
Voltage (2 to 10V)
- Inputs
Status
- Digital communication
IO-Link
- Power supply
18 to 30V DC
- Product safety
cULus listing
- Hygienic approvals and certificates
Drinking water approvals: NSF
