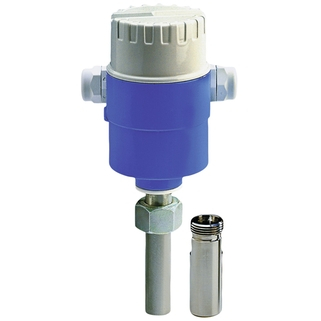

Compact Electromagnetic Flow Switch: Cost-Effective Water Flow Monitoring for Industrial Utilities
In modern industrial utility and water processing plants, maintaining steady circulation is critical to operational safety. As a trusted global supplier of premier automation brands, Zhongke Global Industrial International Limited provides original, high-quality compact electromagnetic flow switches (such as the Magphant series) for worldwide utilities water applications. Combining the proven Faraday’s law of induction with an intuitive control interface, this device delivers high repeatability and universal usability, ensuring comprehensive process safety and fast, cost-effective procurement for your plant infrastructure.
Key Features of Our Compact Electromagnetic Flow Switch
Designed for seamless integration into diverse piping networks, this compact electromagnetic flow switch addresses the primary pain points of traditional mechanical flow monitors:
- Energy-Saving with Zero Pressure Loss: The full-bore/insertion sensor design features no moving parts or cross-section constrictions. It functions as a no pressure loss flow switch, significantly reducing pumping energy costs over long-term operation.
- Maintenance-Free Reliability: Without mechanical gears or paddles to wear out or clog, it eliminates the downtime and maintenance costs associated with traditional mechanical flow indicators.
- Advanced Process Safety & Self-Monitoring: Built-in electronics provide continuous device self-monitoring. It guarantees reliable empty pipe monitoring, preventing critical equipment like water pumps from running dry.
- Effortless Operation & Adjustment: No complex software programming is required. Operators can achieve precise switch point setting via a rotary switch and adjust full-scale calibration directly through the integrated potentiometer.
- Rugged Build for Harsh Environments: Encased in a die-cast aluminum housing with an epoxy powder coating, it boasts an IP66 / NEMA 4X protection rating, making it highly resilient in damp industrial spaces.
Fields of Application & Industrial Media Compatibility
As a versatile inline water flow monitoring switch, its electromagnetic measuring principle functions virtually independent of process pressure, fluid density, temperature, or viscosity, making it universally applicable across various utilities:
- Target Media: Industrial tap water, cooling tower water, circulating water, treated wastewater, demineralized water, and conductive aqueous solutions.
- Power & Steel Industries: Perfect for cooling water loop low-flow alarms on blast furnaces, turbines, and generators to mitigate overheating risks.
- Water & Wastewater Treatment: Used in effluent pipe lines, chemical dosing loops, and filtration backwash lines for empty-pipe protection and flow control.
- Chemical & General Manufacturing: Ideal for monitoring heat exchangers, chilling units, and plant utilities requiring consistent flow verification.
Technical Specifications
| Specification Item | Technical Data & Parameters |
|---|---|
| Measuring Principle | Electromagnetic (Bidirectional measurement) |
| Nominal Diameter Range | DN15 to DN2000 (1/2-inch to 80-inch) for Steel or Plastic Pipes |
| Measured Variables | Volume Flow |
| Measurement Error | ±2% |
| Measuring Range | 0 to 56,550 m³/h |
| Process Pressure Range | 0 to 16 bar abs |
| Medium Temperature | -20 to +120°C (-4 to +248°F) |
| Wetted Materials | 1.4435 / 316L Stainless Steel |
| Signal Outputs | 4 to 20 mA Current Output + Relay Output |
| Power Supply | 24 V DC (20 to 30 V DC) |
| Safety Approvals | ATEX, FM, CSA (Hazardous Areas); CE, EAC (Product Safety)” |
Frequently Asked Questions (FAQ)
Q1: Why choose a compact electromagnetic flow switch over a traditional mechanical paddle flow switch?
A: Traditional mechanical paddle switches easily wear out, clog, or get stuck due to debris in water utilities. Our compact electromagnetic flow switch features a maintenance-free design with no moving parts. This eliminates mechanical failure risks, significantly reduces downtime, and lowers the total cost of ownership for industrial manufacturing plants.
Q2: Does this insertion water flow switch cause a pressure drop in large-diameter pipelines?
A: Not at all. This device operates as a no pressure loss flow switch because its sensor profile does not restrict the pipe’s cross-section. Whether installed in a small DN15 pipe or a massive DN2000 industrial water line, it ensures energy-saving flow measurement without adding extra burden to your pumping systems.
Q3: How does the reliable empty pipe monitoring feature protect industrial water pumps?
A: Our compact electromagnetic flow switch by Zhongke Global comes with an advanced self-monitoring electronic system. When a pipe runs dry or fluid levels drop below full capacity, the reliable empty pipe monitoring function triggers an instant alert via the relay output, allowing operators to shut down water pumps immediately to prevent costly dry-running damage.
Q4: Is this inline water flow monitoring switch compatible with both steel and plastic piping networks?
A: Yes, it is highly versatile. It is fully applicable for both steel and plastic pipes across a nominal diameter range of DN15 to DN2000 (1/2-inch to 80-inch). For non-conductive plastic pipes, just ensure proper grounding according to standard electromagnetic measuring principles to guarantee a stable 4 to 20 mA and relay output signal.
Q5: How easy is the switch point setting via a rotary switch for on-site operators?
A: It is designed for maximum simplicity. Field operators do not need any complex programming software or handheld calibrators. You can easily complete the switch point setting via a rotary switch directly inside the rugged NEMA 4X housing. Full-scale calibration can also be adjusted on the fly using the built-in potentiometer, enabling plug-and-play deployment.
