Description
Field of application

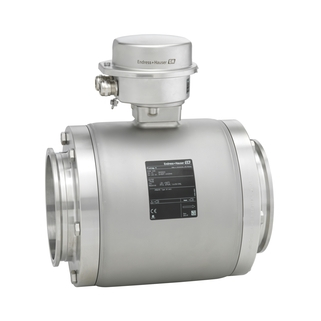

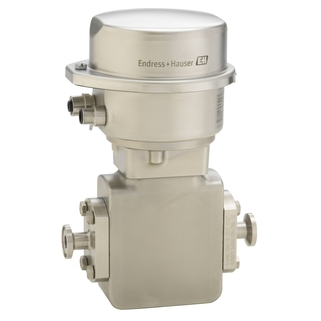

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. The ultra-compact transmitter provides full performance on the smallest footprint and enables seamless system integration, making Promag H 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables compliance and process safety at all times.
Benefits
- Multivariable measurement for flow, temperature and conductivity
- Flexible installation – numerous hygienic process connections and 0 x DN inlet run with constant accuracy independent of flow profile
- Energy-saving flow measurement – no pressure loss due to cross-section constriction
- Space-saving transmitter – full functionality on the smallest footprint
- Time-saving local operation without additional software and hardware – integrated web server
- Integrated verification – Heartbeat Technology
- Maintenance-free – no moving parts
- The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
- Dedicated to demanding applications in the food and beverage as well as in life sciences industries
Device properties
- Integrated temperature measurement
- Sensor housing made of stainless steel (3-A, EHEDG)
- Wetted materials CIP, SIP cleanable
- Robust, ultra-compact transmitter housing
- High ingress protection: IP69
- Local display available
- Measuring principle
Electromagnetic
- Product headline
Specialist for hygienic applications with an ultra-compact transmitter.
Multivariable measurement of flow, temperature and conductivity.
Dedicated to demanding applications in the food and beverage as well as in life sciences industries.
- Sensor features
Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
Integrated temperature measurement. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP, SIP cleanable.
- Transmitter features
Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Robust, ultra-compact transmitter housing. High degree of protection: IP69. Local display available.
- Nominal diameter range
DN 2 to 150 (¹⁄₁₂ to 6″)
- Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
- Measured variables
Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected
conductivity
- measurement error
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
- Measuring range
0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)
- process pressure
PN 40, Class 150, 20K
- Medium temperature range
–20 to +150 °C (–4 to +302 °F)
- Ambient temperature range
–40 to +60 °C (–40 to +140 °F)
- Sensor housing material
1.4301 (304), corrosion resistant
- Transmitter housing material
Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)
- Degree of protection
Standard: IP66/67, type 4X enclosure
Option: IP69
- Display/Operation
4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
- Outputs
4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
- Inputs
None
- Digital communication
HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET
- Power supply
DC 20 to 30 V
- Hazardous area approvals
ATEX, IECEx, cCSAus, INMETRO, EAC
- Product safety
CE, C-tick
- Metrological approvals and certificates
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Verification: Heartbeat Technology complies with requirements for traceable verification according to ISO 9001:2008, chapter 7.6. a (TUV attestation)
- Marine approvals and certificates
LR approval, DNV approval, ABS approval, BV approval
- Pressure approvals and certificates
PED, CRN
- Material certificates
3.1 material
- Hygienic approvals and certificates
Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP
