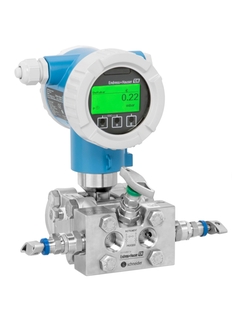

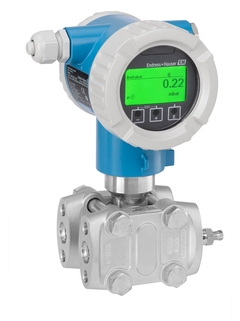

Product Overview
The Deltabar PMD75B represents the next generation of industrial process control, engineered to eliminate unplanned downtime and simplify field operations. As a premium smart differential pressure transmitter, the PMD75B goes beyond basic pressure measurement by offering real-time, condition-based monitoring. Equipped with proprietary Heartbeat Technology, it actively detects process anomalies—such as plugged impulse lines—before they cause costly system shutdowns.
Whether you are managing complex flow, level, or differential pressure applications, the Deltabar PMD75B delivers up to 0.035% Platinum accuracy and seamless wireless configuration via the SmartBlue App, making it the most reliable asset for demanding B2B industrial environments.
Key Benefits for Industrial Operations
- Predictive Maintenance with Heartbeat Technology: Verify instrument health and detect plugged impulse lines in real-time without interrupting active processes.
- Visual Status Alerts: High-visibility LED display changes from green to red instantly when diagnostic or safety messages occur.
- Error-Free Safety Commissioning: Instrument-guided wizards simplify SIL commissioning, proof testing, and device verification to mitigate human error.
- Secure Wireless Control: Safely configure, monitor, and troubleshoot hard-to-reach measurement points from up to 25 meters away via the SmartBlue Bluetooth® App.
- Extreme Process Resilience: Built for high-pressure environments with a static pressure capability up to 420 bar (6300 psi) and an overpressure limit up to 630 bar.
Technical Specifications
| Feature / Parameter | Standard Specification | Platinum High-Precision Specification |
| Reference Accuracy | Up to ±0.05 % | Up to ±0.035 % |
| Measuring Range | 10 mbar…250 bar (0.15 psi…3750 psi) | 10 mbar…250 bar (0.15 psi…3750 psi) |
| Max. Process Pressure (Static) | 420 bar (6,300 psi) | 420 bar (6,300 psi) |
| Max. Overpressure Limit | 630 bar (9,450 psi) | 630 bar (9,450 psi) |
| Long-Term Stability | 0.05 % of URL / 5 years | 0.025 % of URL / year (0.10 % / 10 years) |
| Process Temperature Range | -40°C…+110°C (-40°F…+230°F) | -40°C…+110°C (-40°F…+230°F) |
| Ambient Temperature Range | -40°C…+85°C (-40°F…+185°F) | -40°C…+85°C (-40°F…+185°F) |
| Turn Down Ratio | 100:1 | 100:1 |
| Smallest Calibratable Span | 0.25 mbar (0.00375 psi) | 0.25 mbar (0.00375 psi) |
| Wetted Membrane Materials | 316L, AlloyC, Tantalum, Monel, Gold | 316L, AlloyC, Tantalum, Monel, Gold |
| Gasket Materials | PTFE, FKM, EPDM, FFKM | PTFE, FKM, EPDM, FFKM |
| Digital Communication Protocol | 4…20 mA HART, PROFIBUS PA, PROFINET with Ethernet-APL, Bluetooth® | |
| Safety & Design Approvals | SIL2/3, ATEX, IECEx, CSA, NEPSI, UK Ex, NACE MR0175 / MR0103, NSF/KTW |
Applications & Industries
Thanks to its robust construction and advanced diagnostics, the Deltabar PMD75B is widely utilized across critical process industries:
- Chemical & Petrochemical: Safe monitoring of aggressive fluids using exotic membrane materials like Tantalum and Gold.
- Oil & Gas: High-pressure flow and level measurements with full compliance to NACE standards.
- Power & Energy: Continuous monitoring of steam and water loops with real-time plugged impulse line alerts.
- Water & Wastewater: Certified drinking water setups utilizing NSF and KTW approved components.
Frequently Asked Questions (FAQ)
What is Heartbeat Technology on the Deltabar PMD75B?
Heartbeat Technology is an integrated diagnostic software suite that provides continuous self-monitoring and device verification without interrupting your active industrial process. On the PMD75B, it specifically detects anomalies like plugged impulse lines, allowing for condition-based maintenance before a failure occurs.
Can the Deltabar PMD75B be used in hazardous areas?
Yes. The PMD75B comes with global explosion-proof and intrinsic safety certifications, including ATEX, IECEx, CSA, NEPSI, and UK Ex, making it completely safe for Zone 0, Zone 1, and Zone 2 applications.
How does the SmartBlue App improve field safety?
The SmartBlue App uses a secure, encrypted Bluetooth® connection that allows field technicians to calibrate, configure, and run diagnostic tests on the transmitter from a distance of up to 25 meters, keeping workers safe from hazardous or hard-to-reach locations.
What communication protocols does this transmitter support?
The transmitter supports modern industrial communication standards, including standard 4…20 mA HART, PROFIBUS PA, and the latest PROFINET with Ethernet-APL for high-speed digital integration.
